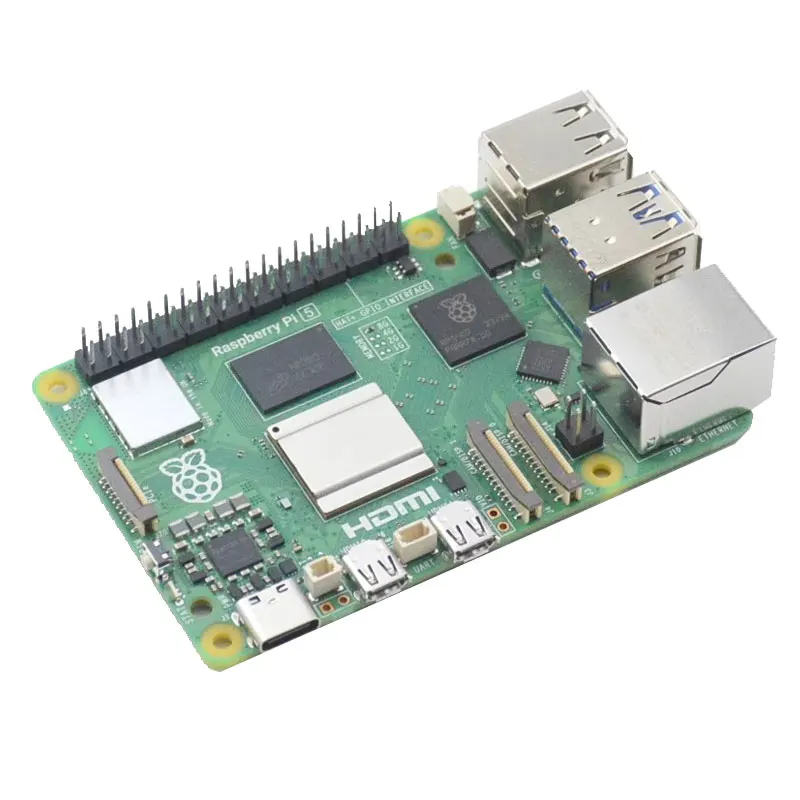

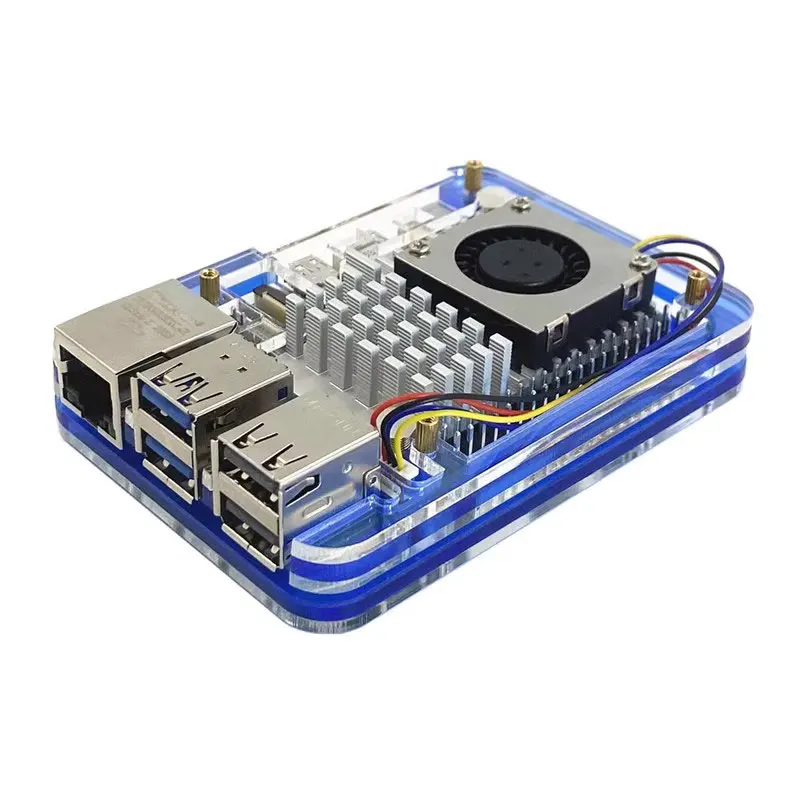

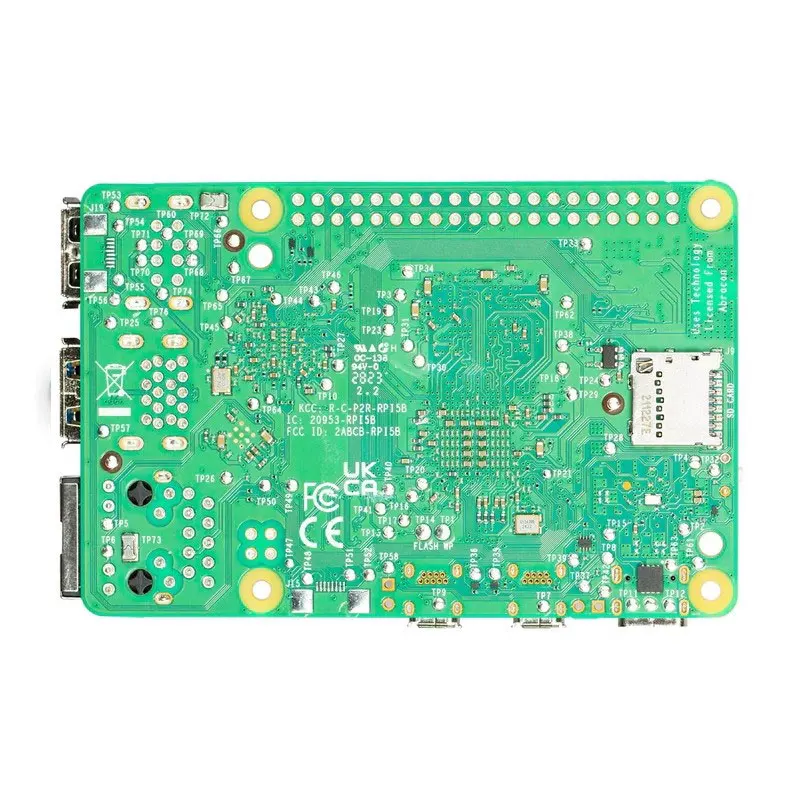

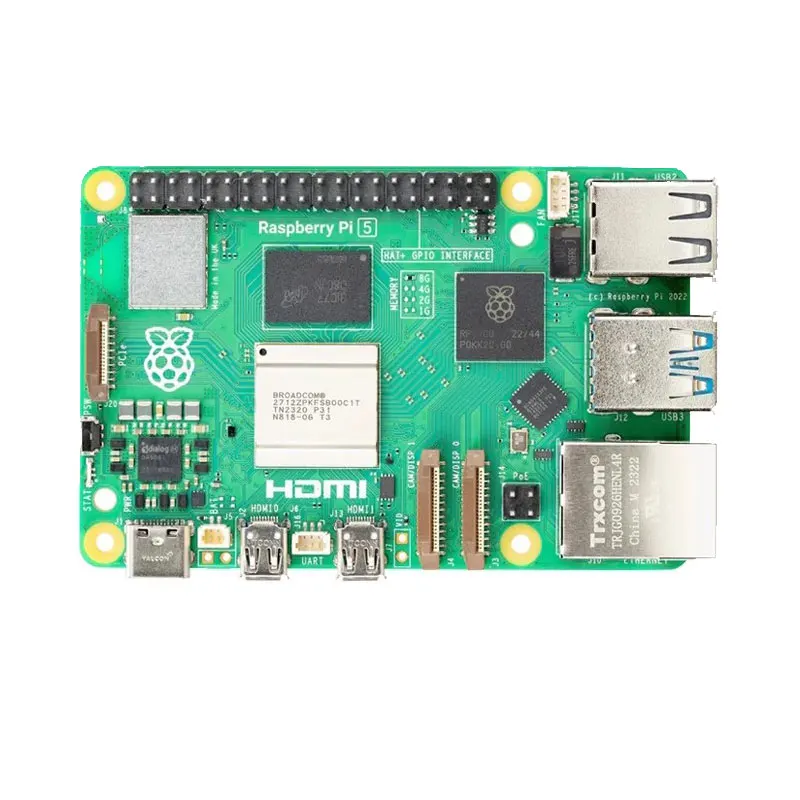

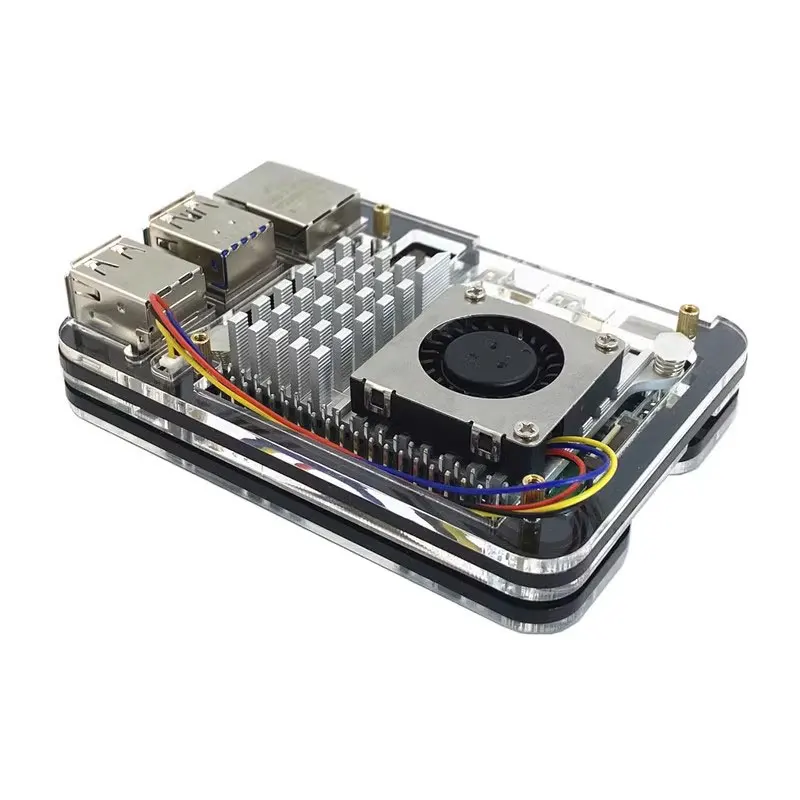

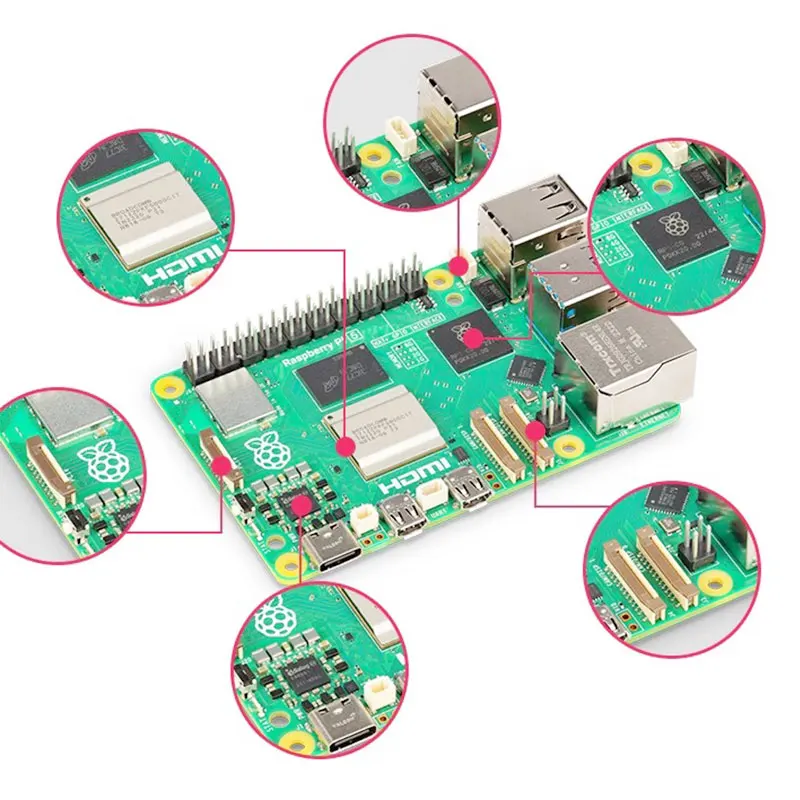

Official Original Raspberry Pi 5 4GB 8GB RAM Development Board Case Cooling Fan Cooler Optional
1,432.47 zł – 2,456.78 zł
Brand Name: SZCLX Demo Board Type: ARM Origin: GB(Origin) Model Number: Raspberry Pi 5 Memory Capacity: 4GB Processor Brand: BROADCOM Interface: HDMI-Compatible/RCA Output Certification: CE, FCC Official Original Raspberry Pi 5 4GB 8GB RAM Development Board Case Cooling Fan Cooler Optional Specifications 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache VideoCore VII GPU @800MHz, supporting […]
Description
- Brand Name: SZCLX
- Demo Board Type: ARM
- Origin: GB(Origin)
- Model Number: Raspberry Pi 5
- Memory Capacity: 4GB
- Processor Brand: BROADCOM
- Interface: HDMI-Compatible/RCA Output
- Certification: CE, FCC
Official Original Raspberry Pi 5 4GB 8GB RAM Development Board Case Cooling Fan Cooler Optional
Specifications
-
2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
-
VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
-
Dual 4Kp60 HDMI-compatible display output
-
4Kp60 HEVC decoder
-
LPDDR4X-4267 SDRAM (options for 4GB/8GB)
-
2.4GHz/5GHz dual-band 802.11ac Wi-Fi
-
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
-
TF card slot, with support for high-speed SDR104 mode
-
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
-
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
-
2 × 4-lane MIPI DSI/CSI port
-
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
-
5V/5A DC power via USB-C, with Power Delivery support
-
Raspberry Pi standard 40-pin header
-
Real-time clock (RTC), powered from external battery (not included)
-
Onboard power button for power on/off without disconnecting power adapter
Raspberry Pi 4B & 5 Comparison
|
MODULE |
Raspberry Pi 4B |
Raspberry Pi 5 |
|
CPU |
Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.8GHz frequency |
Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, 2.4GHz frequency |
|
RAM |
Options for 2GB/4GB/8GB |
Options for 4GB/8GB |
|
INTERFACES |
2.4GHz and 5.0GHz 802.11a dual-band WiFi |
2.4GHz and 5.0GHz 802.11a dual-band WiFi |
|
Bluetooth 5.0, BLE |
Bluetooth 5.0, BLE |
|
|
Gigabit Ethernet |
Gigabit Ethernet |
|
|
N/A |
1 × PCle 2.0 interface |
|
|
2 × USB 3.0, 2 × USB 2.0 |
2 × USB 3.0, supporting simultaneous 5Gbps operation |
|
|
Raspberry Pi standard 40PIN GPIO header |
Raspberry Pi standard 40PIN GPIO header |
|
|
2 × micro HDMI interface (up to 4Kp60) |
2 × micro HDMI interface (up to 4Kp60) |
|
|
2-lane MIPI DSI, 2-lane MIPI CSI |
2 × 4-lane MIPI (DSI/CSI) |
|
|
4-pole stereo audio and composite video port |
N/A |
|
|
OPERATING SYSTEM & DATA STORAGE |
TF card slot |
TF card slot, with support for high-speed SDR104 mode |
|
POWER INPUT |
5V/3A DC (power via USB-C/GPIO) |
5V/5A DC (power via USB-C, support PD) |
|
POE |
requires separate PoE+ HAT |
requires separate new PoE+ HAT |
|
RTC |
N/A |
Onboard RTC and RTC battery connector |
Additional information
| Bundle | 4GB RAM, 4GB RAM-11300236399, 4GB RAM-11316372534, 4GB RAM-200003984, 4GB RAM-200003986, 8GB RAM, 8GB RAM-11300236400, 8GB RAM-200003983, 8GB RAM-200003985, 8GB RAM-202906809 |
|---|
