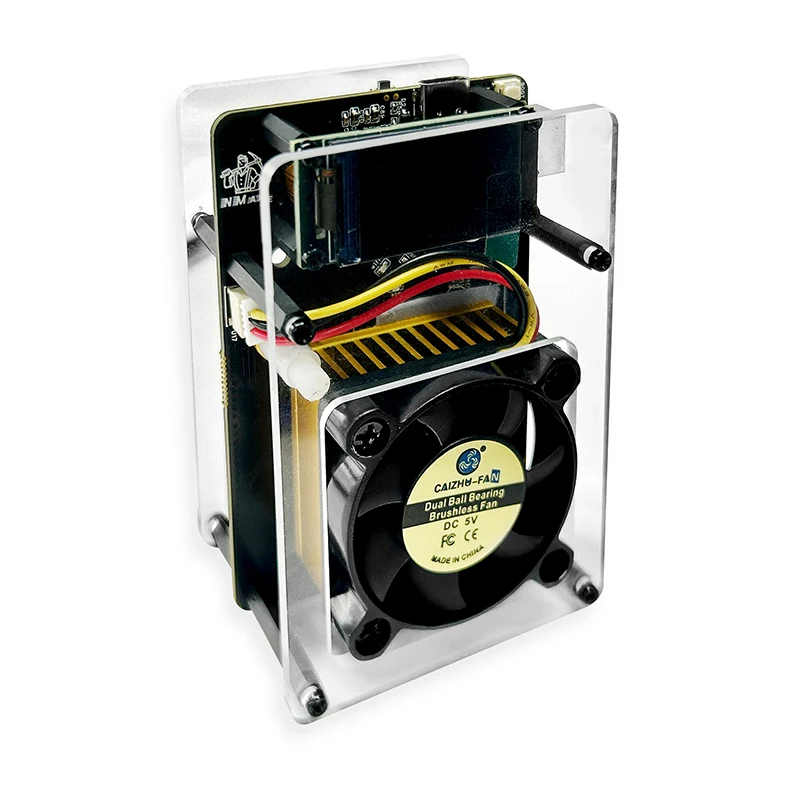

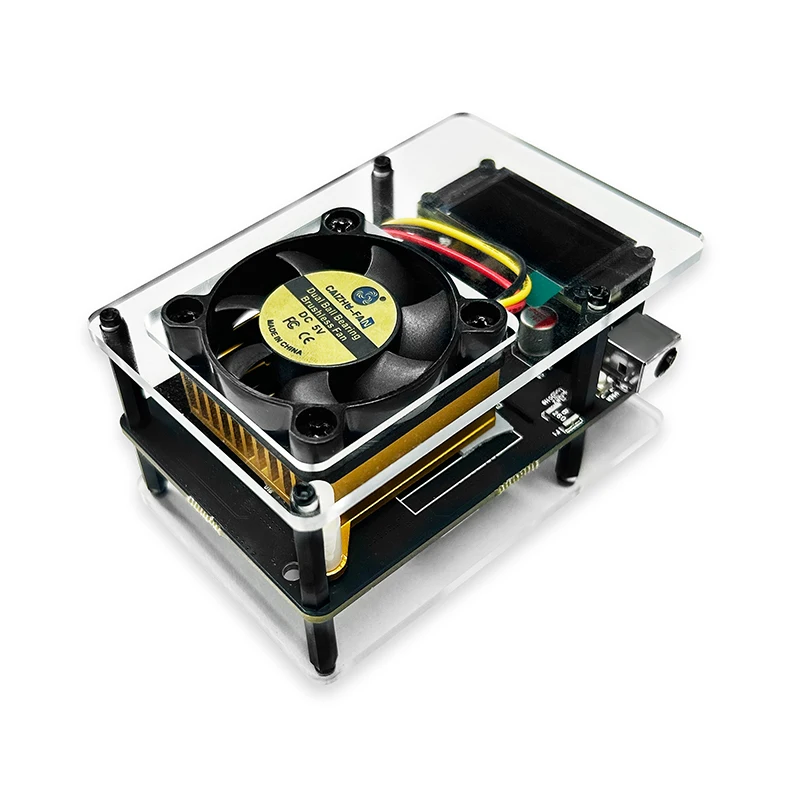

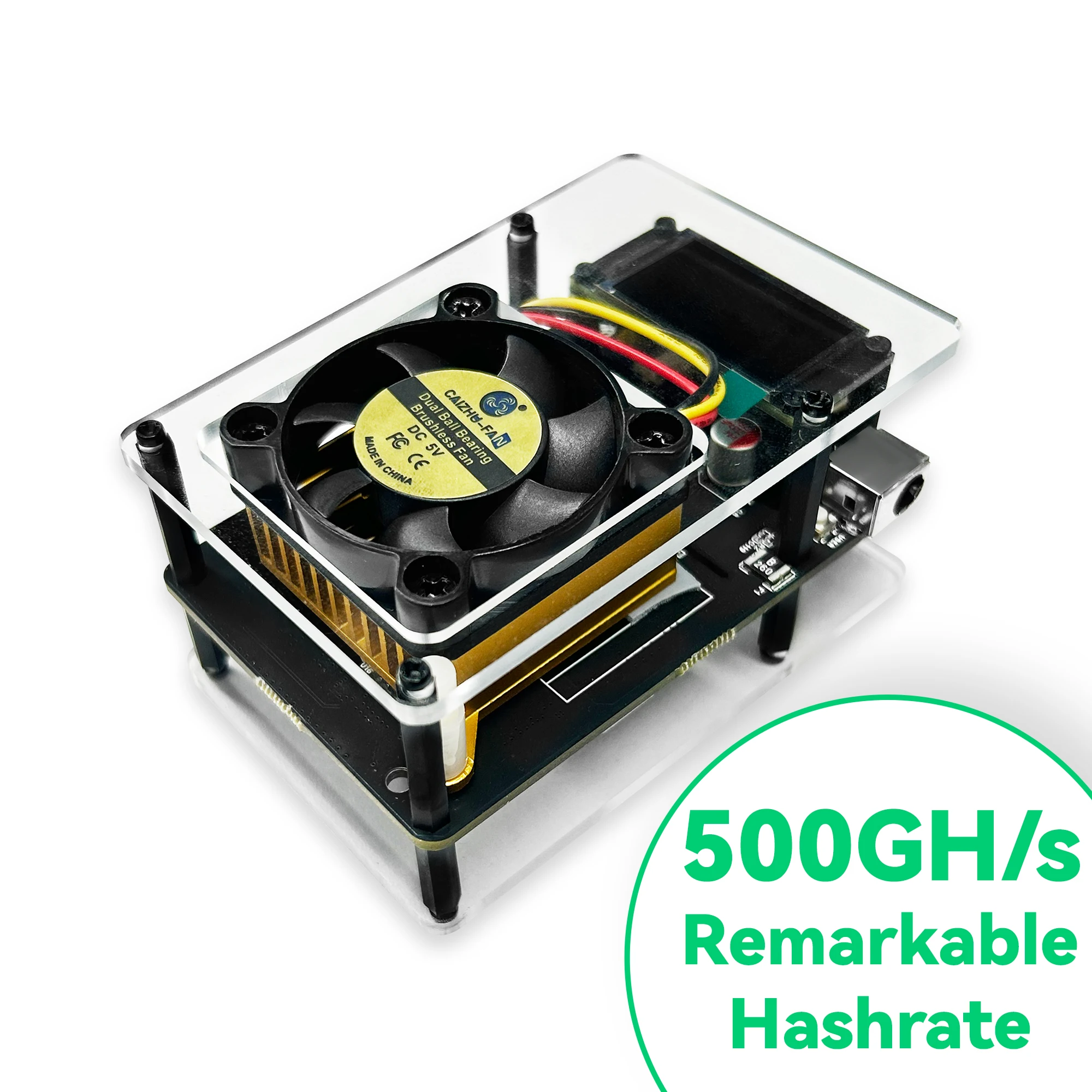

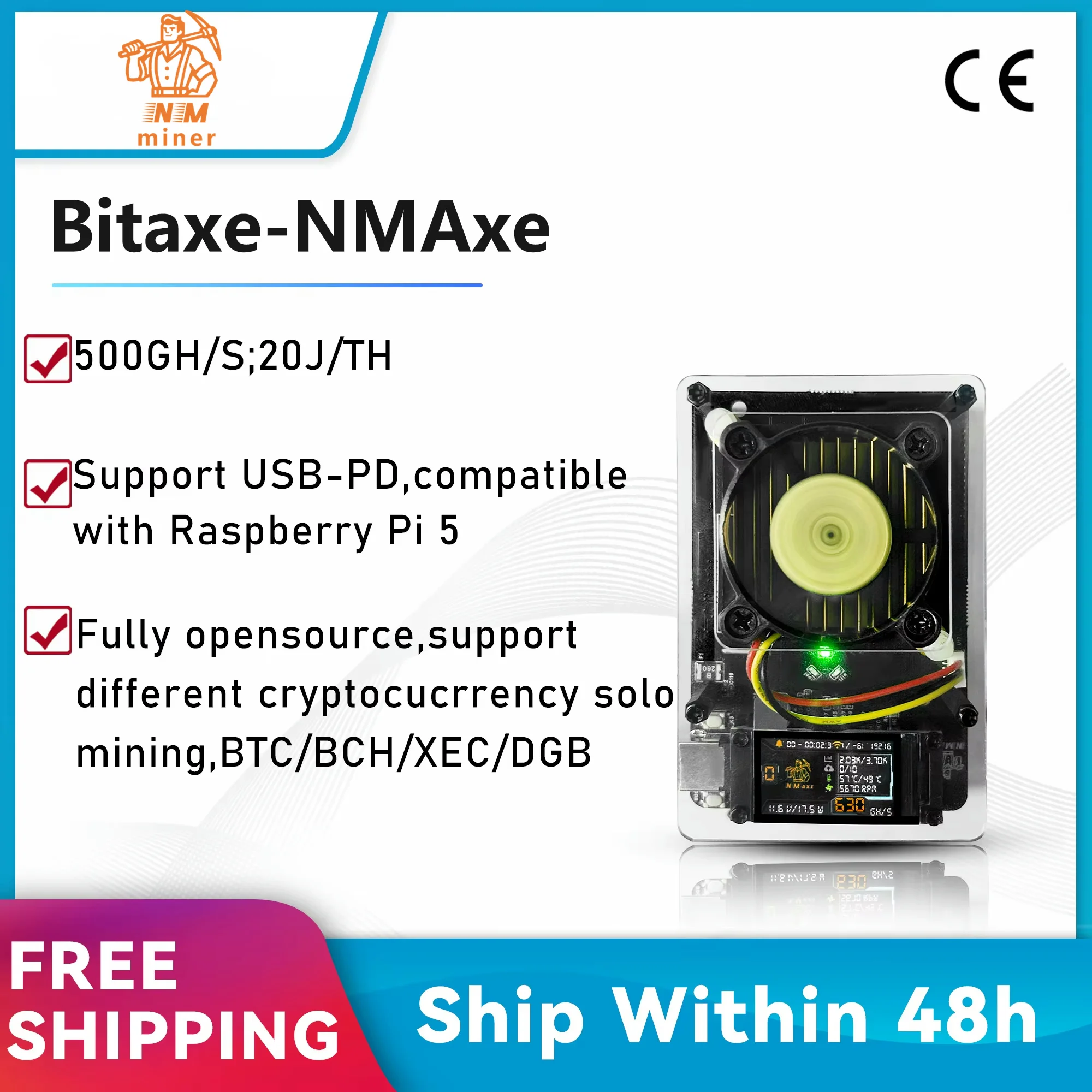

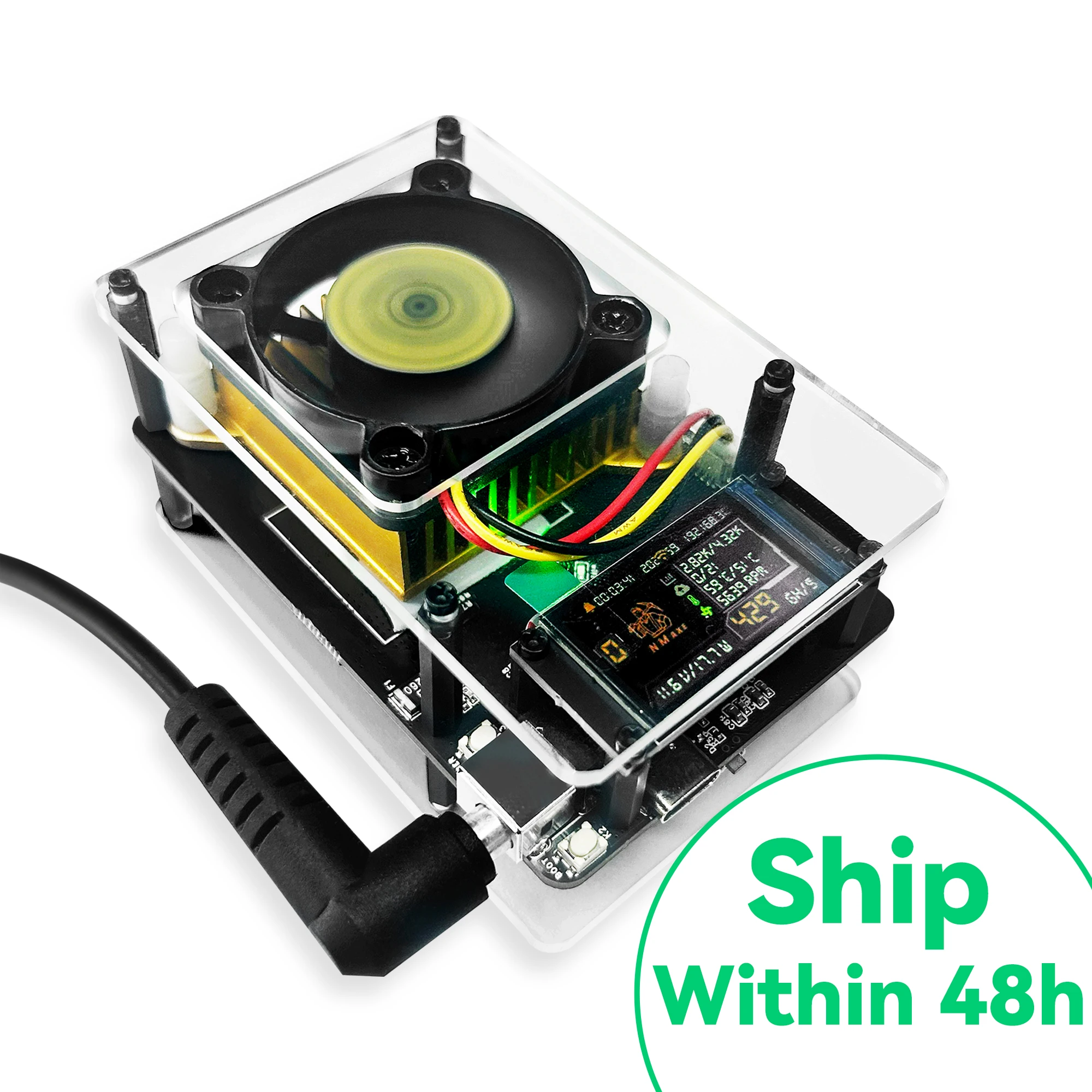

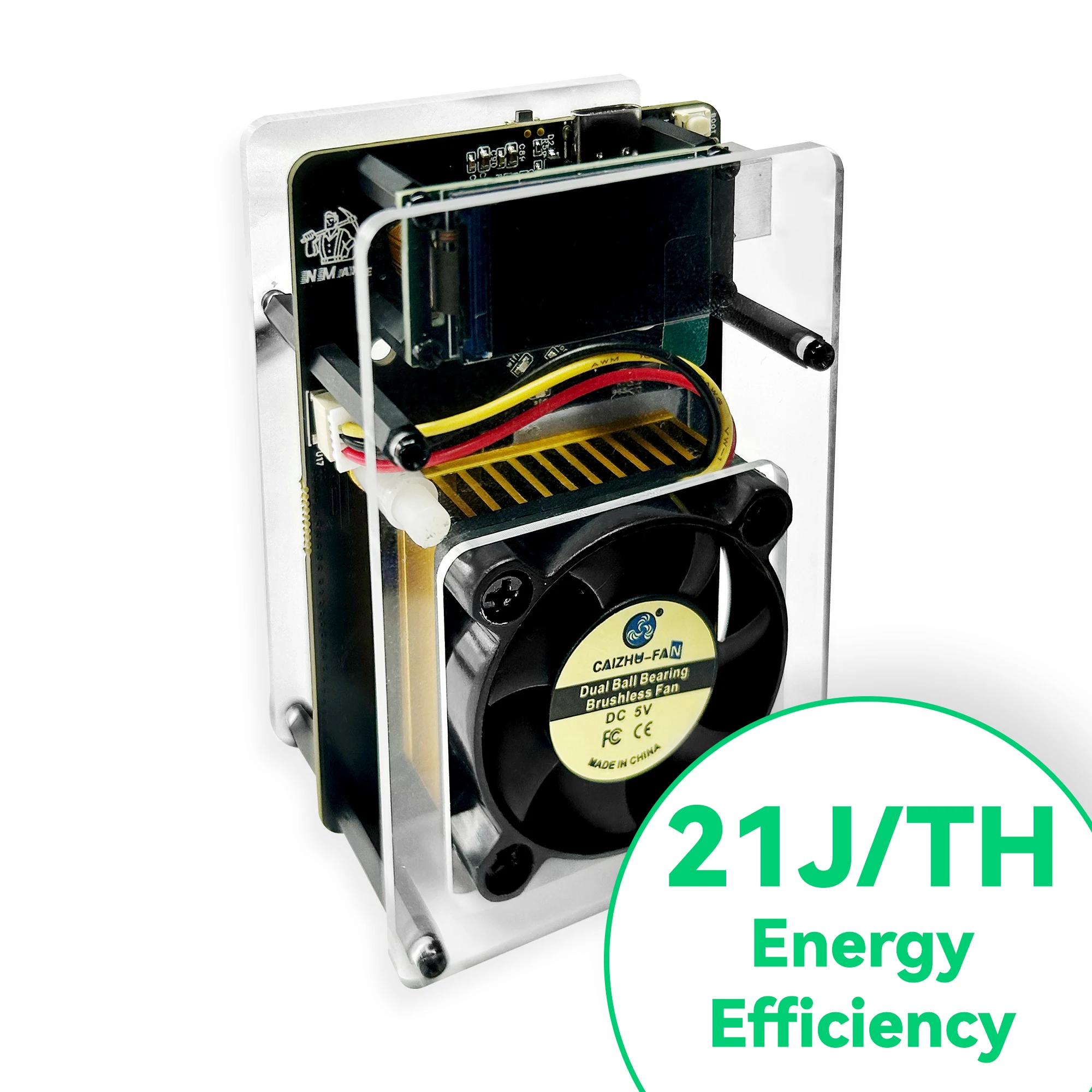

NMAxe Bitaxe BTC NMMiner Official Ultra BM1366 ASIC Solo Lottery Miner 500GH/s OpenSource Silent Home Use with FullColor Display

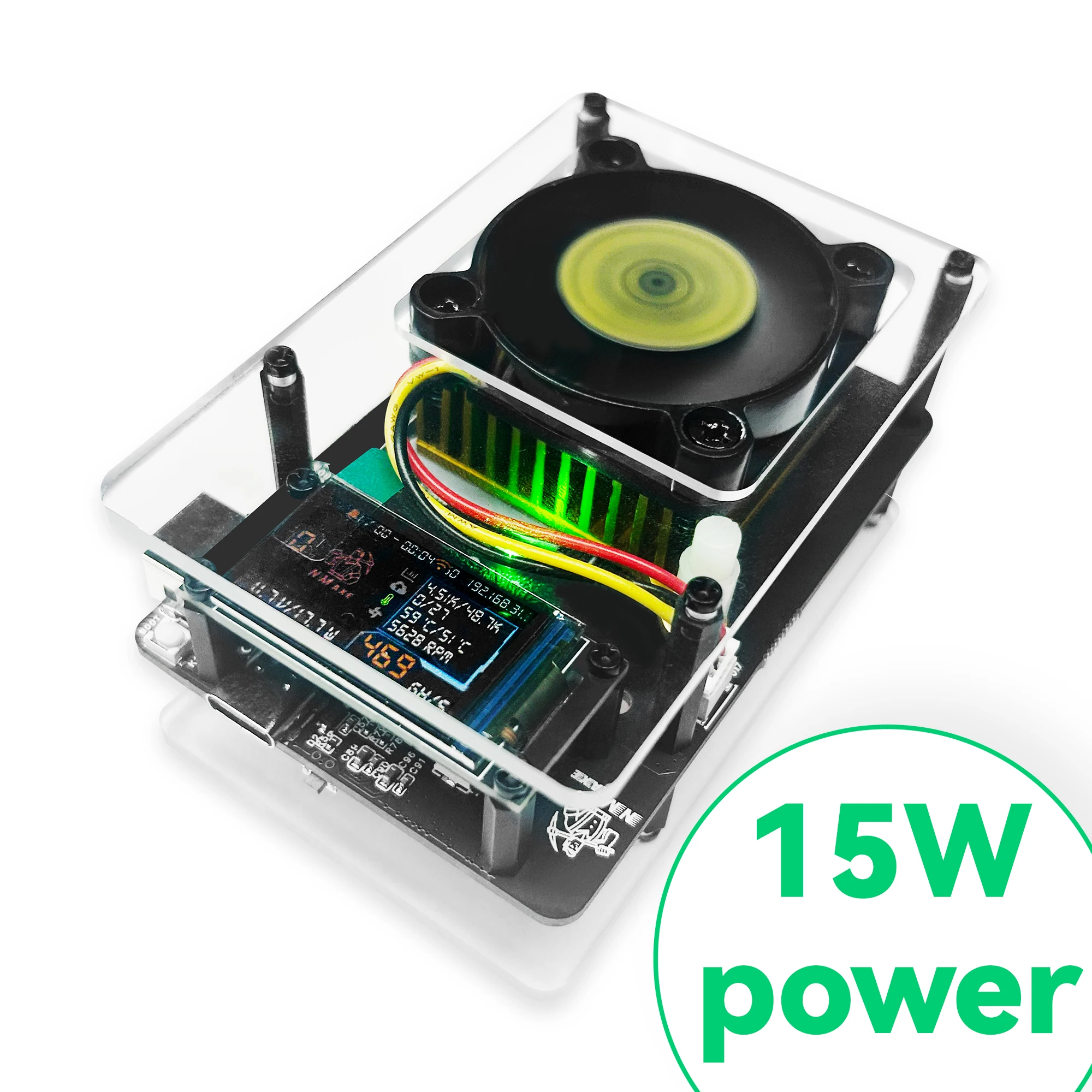

NMAxe Bitaxe BTC NMMiner Official Ultra BM1366 ASIC Solo Lottery Miner 500GH/s OpenSource Silent Home Use with FullColor Display - Image 2

NMAxe Bitaxe BTC NMMiner Official Ultra BM1366 ASIC Solo Lottery Miner 500GH/s OpenSource Silent Home Use with FullColor Display - Image 3

NMAxe Bitaxe BTC NMMiner Official Ultra BM1366 ASIC Solo Lottery Miner 500GH/s OpenSource Silent Home Use with FullColor Display - Image 4

NMAxe Bitaxe BTC NMMiner Official Ultra BM1366 ASIC Solo Lottery Miner 500GH/s OpenSource Silent Home Use with FullColor Display

Name: NMAxe Bitaxe BTC NMMiner Official Ultra BM1366 ASIC Solo Lottery Miner 500GH/s OpenSource Silent Home Use with FullColor Display
SKU: 1005008537461777
Availability: InStock

1,498.66 zł – 1,550.28 zł

Summary NMAxe is a NMMiner Offical bitaxe board, with BM1366 ASIC and ESP32-S3, with Wi-Fi, Bluetooth. It’s a Solo mining lottery Miner, perfect for solo miners aiming to strike a Bitcoin block. The NMAxe is your golden ticket to potentially earning the 3.125 BTC block reward( currently value is over $ 300, 000) . This high-efficiency, rewarding […]

Color

Clear

SKU: 1005008537461777

Category: USB BTC miner

Description

Summary

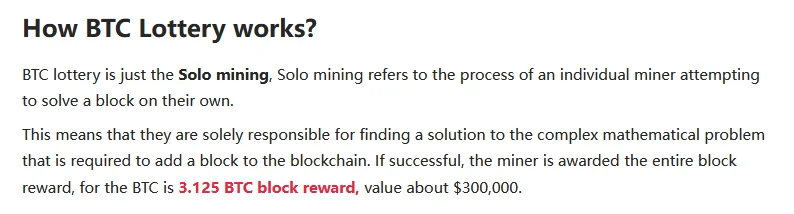

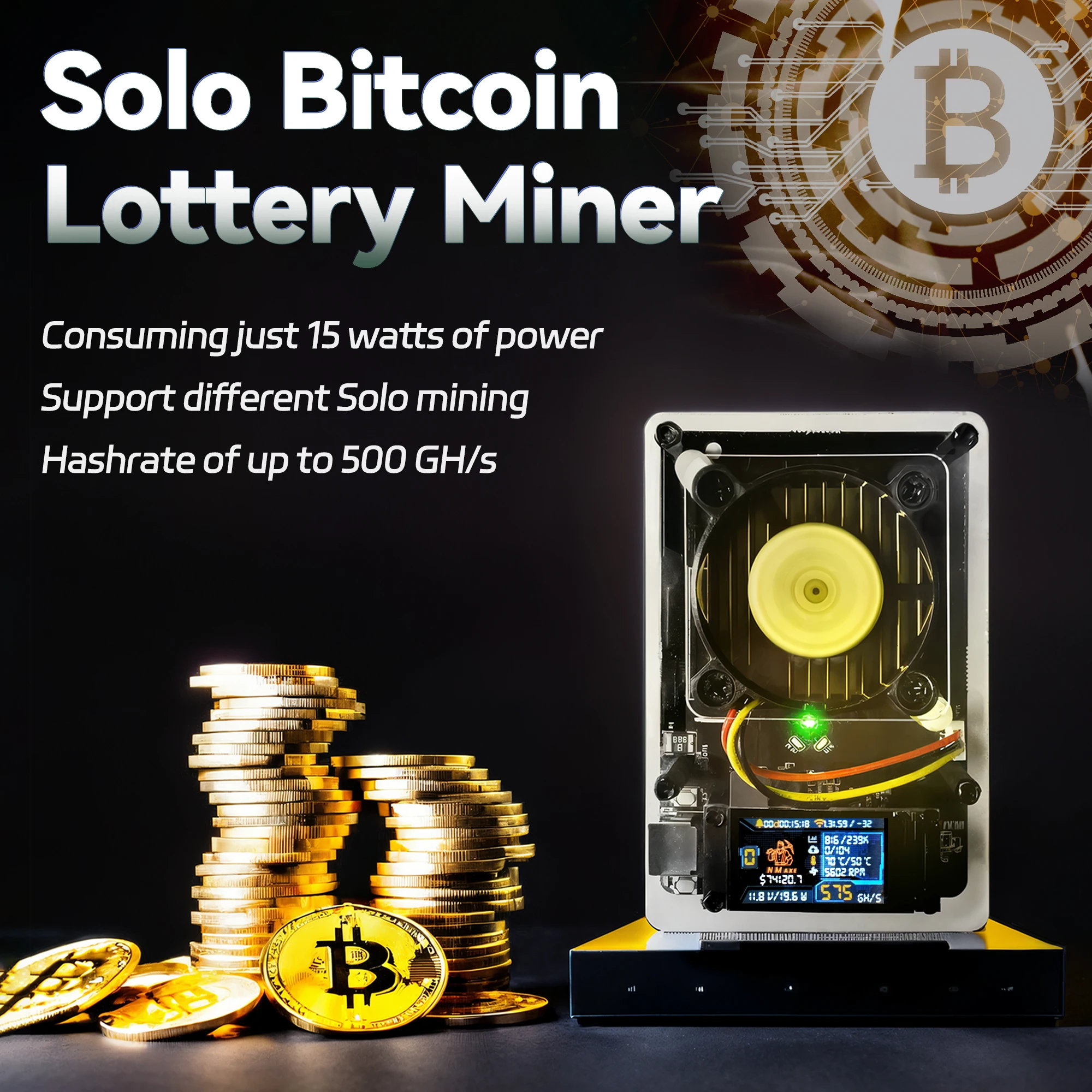

NMAxe is a NMMiner Offical bitaxe board, with BM1366 ASIC and ESP32-S3, with Wi-Fi, Bluetooth. It’s a Solo mining lottery Miner, perfect for solo miners aiming to strike a Bitcoin block. The NMAxe is your golden ticket to potentially earning the 3.125 BTC block reward( currently value is over $ 300, 000) . This high-efficiency, rewarding experience makes it the ultimate lottery miner on the market. For current NMMiner owners, the NMAxe boosts your mining speed from 117 KH/s to 500~550 GH/s, the winning probability has increased by nearly 5 million times.

Notice:

The hashrate is a fluctuating value that fluctuates around 500GH/s(450~550 GH/s). And the parameter should set to Frequency 575MHz, and Vcore 1300 mV. With the default parameter, the Power consumption about 18W.

Specifications

Parameters	Description
Origin	Mainland China
ASIC	BM1366
Master Chip	ESP32-S3R8, Xtensa32 dual core processor
Hash Rate	500 ~ 550 GH/s
Wi-Fi	802.11 b/g/n, up to 150Mbps
Device management	Web service Axe OS/NMController
Power Interface	Type-C USBDC2.0
Supply mode	DCPD3.0 DC adapter and PD charger are supported

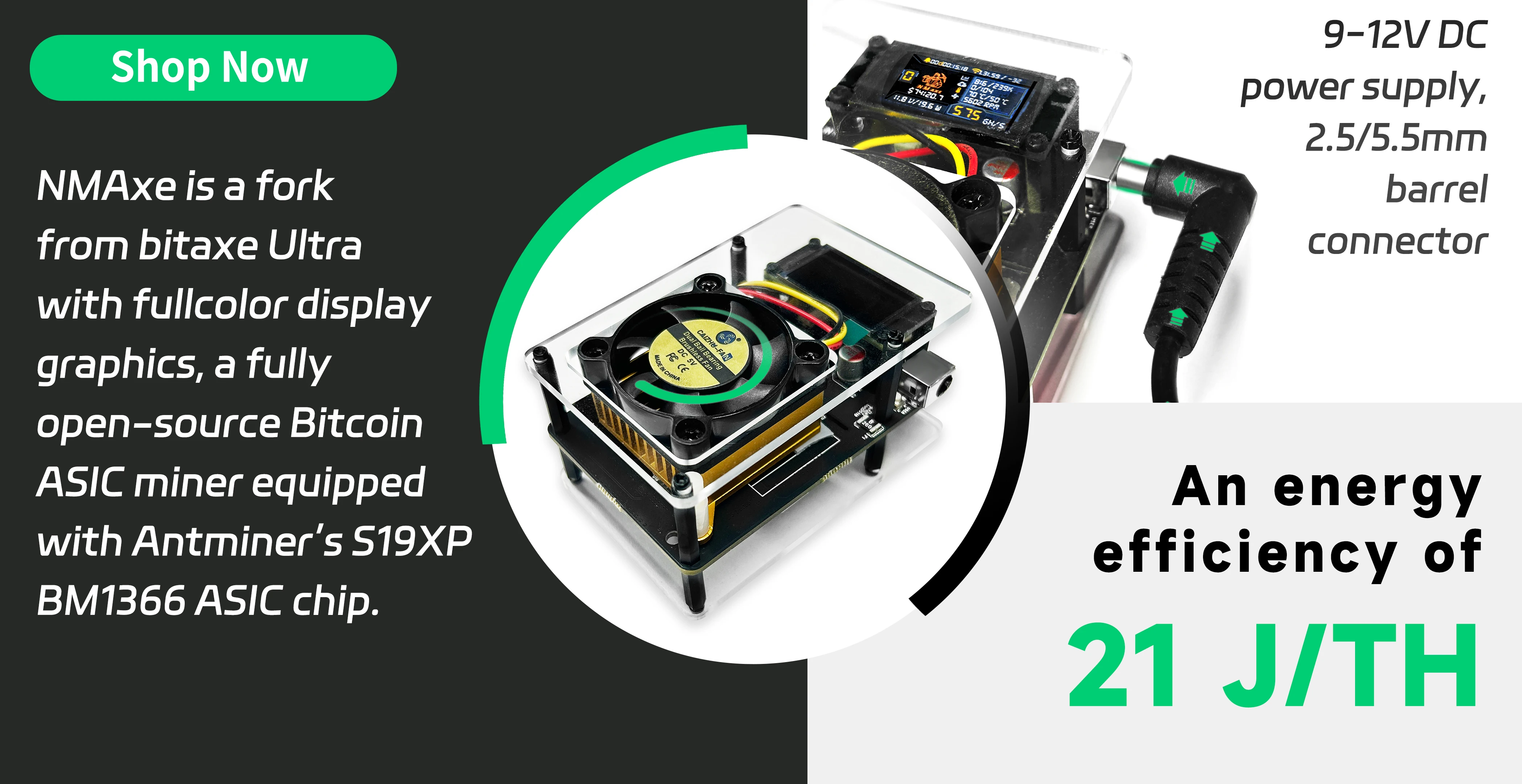

Power supply range	9/2.5A~12V /2A
Power Consumption	15~20W
Display	1.14 inch TFT-LCD ; 135*240;Full-color
Fan	DC 5V/Dual bearing brushless Fan
Heat sink	404014mm

Memory 512KB SRAM; 8MB PSRAM; 384KB ROM; 16MB SPI Flash

Dimensions 85*56*44mm

Operating temperature -20 ~ 70 ℃

Packing List

The default packing list without selecting any accessories is as follows:

Item	Quantity
NMAxe	x1
2V * 12A DC 2.0 Power / 30W-PD	x1

Notice:

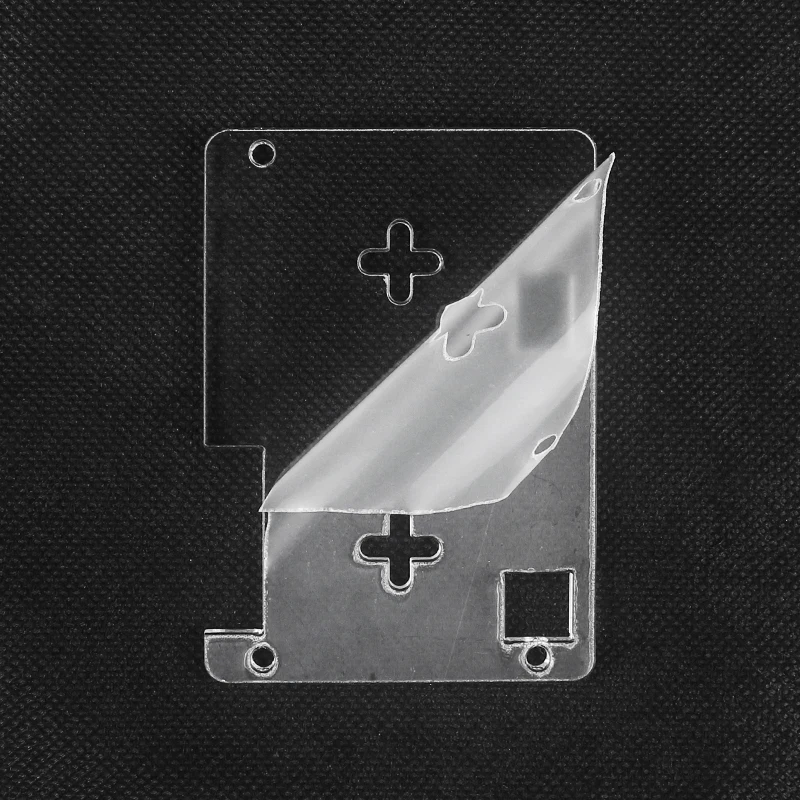

In order to prevent damage to the acrylic shell during transportation, we have retained a layer of film and removed it according to the instructions before power the NMAxe. Otherwise, the screen may not be clear.

Main Features

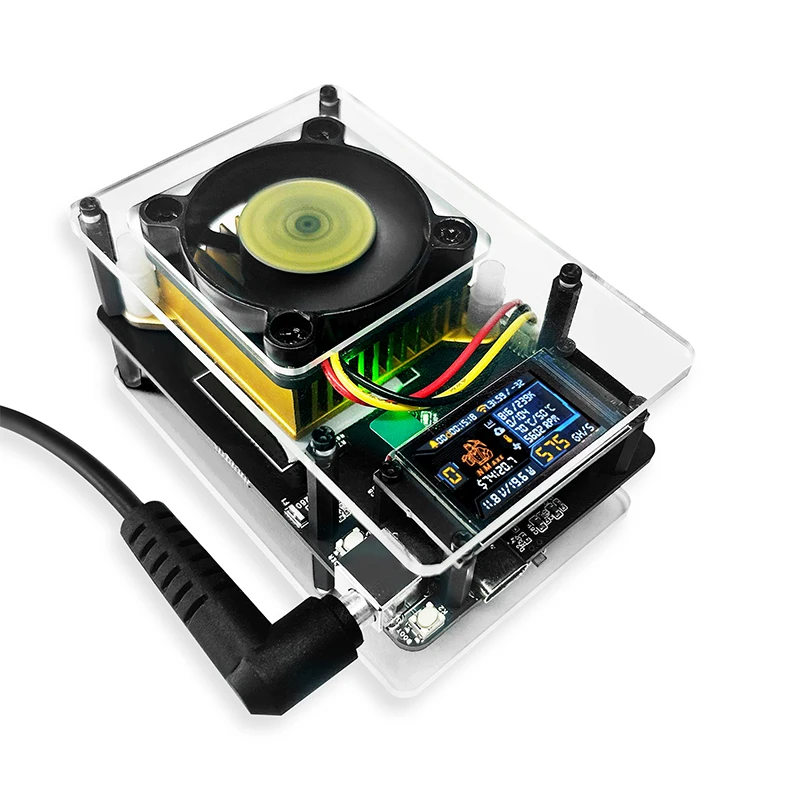

Full graphic screens over 1.14 inch IPS screen.
Bitmain BM1366AL chip.

Operates exclusively on 2.4 GHz Wi-Fi.

Requires a 12V power supply with at least 2A.

Support normal USB-PD supply.

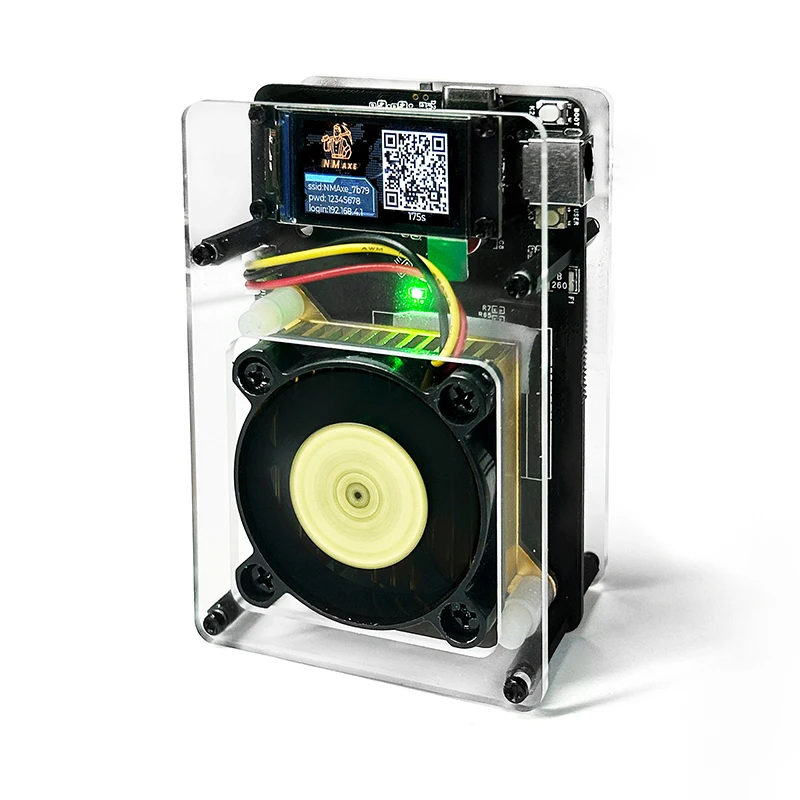

Easy setup via the AxeOS portal.

NMMiner Group Controller for monitoring, Can easily manage multiple devices, both NMMiner and NMAxe.

Support different Cryptocucrrency using SHA256d Solo mining, such as BTC/BCH/XEC/DGB.

The device is compatible with Raspberry Pi 5-size structure and can be compatible with Raspberry Pi related shell devices.

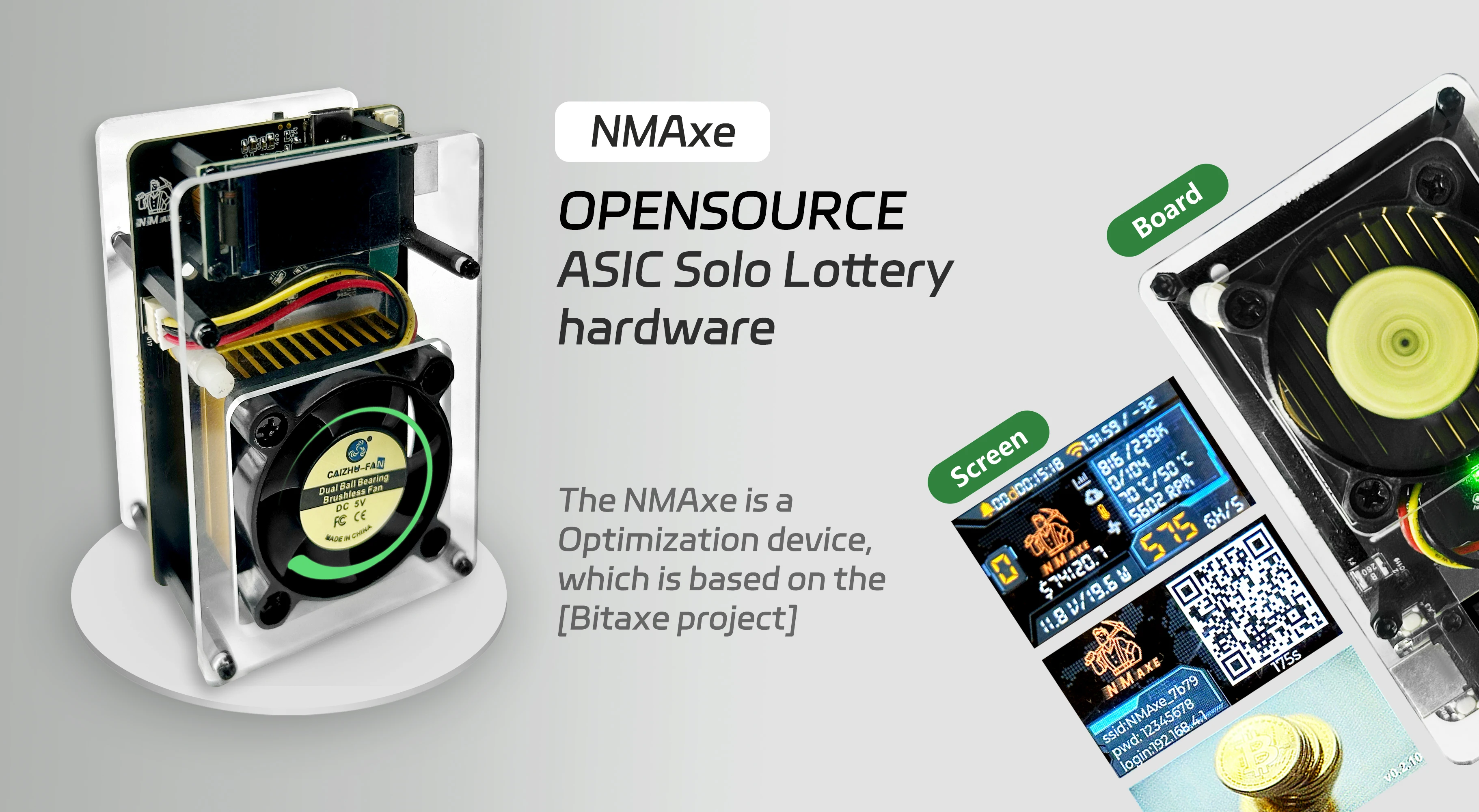

Differences/Improvements from Bitaxe Devices

The NMAxe also support the “SSL connections“, which solving the information security problems in some regions and countries.

At the same time, the device supports “USB PD power supply“, so common mobile Type-C adapters can used to power the NMAxe.

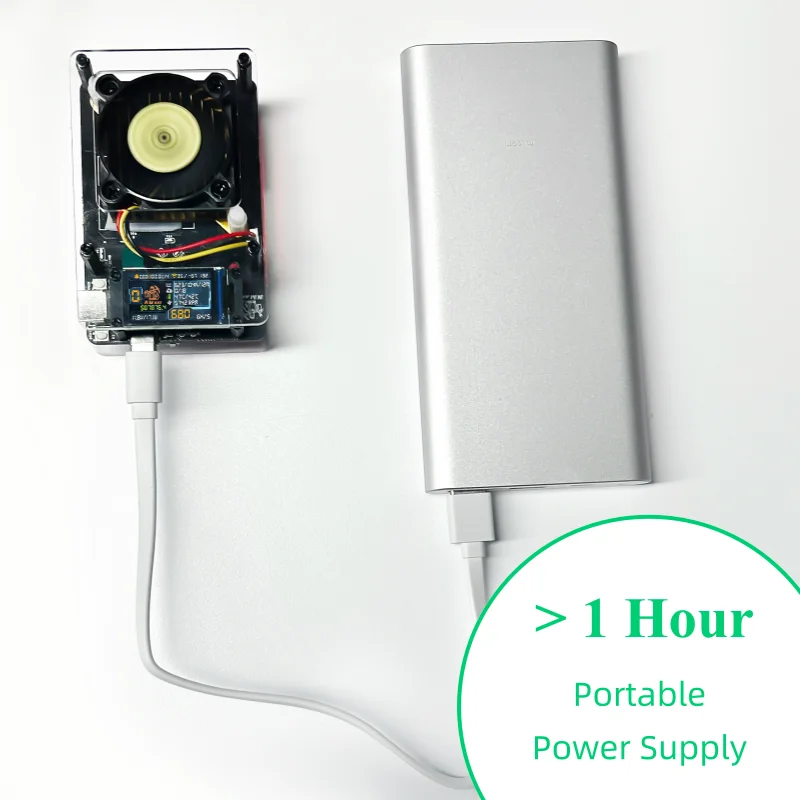

Besides, the portable power bank supplies power to the NMAxe devices. A regular 10000mAh power bank can provide power to NMAxe devices for over 1 hour. So, even with a portable power bank and WiFi hotspot, you won’t miss the opportunity to get a BTC block reward.
NMMiner group controller, which can helps to manage NMMiner and NMAxe devices together, with the NMController can easy goto the AxeOS.

From the Version 2.3.10, we combined the NMController with the AxeOS’s swarm, which can automatically scan and manage the NMMiner and NMAxe devices together.
